Windows & macOS desktop utility for calibration-file workflows

Convert, inspect, and organize your calibration file library fast.

PAT Calibration Toolbox is built for many many formats and types of ECU clalibration files: convert calibration and BIN, inspect key identifiers, manage segments, batch-sort large folders, edit at the hex level, and run bundled tools like PAT VBF/PHF ↔ BIN, XCAL and checksum utilities.

Download for Windows Download for macOS Explore Features Purchase Page
Version: Status: Ready
calibration and BIN Conversion utilities designed for repeatable workflows.
Segment Tools Compare and copy compatible segments (donor target).
Convert Convert between many types of file formats whether that be raw hex or binary, or other tuning file formats from other tuining platforms.
Other Tools Other tools include, XCAL to BIN, Ford PHF and VBF <-> BIN, GM Checksum Corrector (E41, E42, E66, E46), and Chrysler/Dodge/Ram Factory .EFD File browser/exporter.
Batch Sorting Organize file libraries by OS/strategy, make, and year.

What you can do with PAT Calibration Toolbox

Designed for speed, clarity, and repeatability. A fast, modern desktop app with a clean two-panel interface and a bundled Tools tab (PAT VBF/PHF ↔ BIN, XCAL, checksums, VIN2HEX and more).

Main / File Information

Open a file and instantly view identifiers like VIN, OS/strategy, module IDs, and version info helpful for cataloging and verification.

FROM BIN and TO BIN

Two-way conversion utilities to move between common working formats, enabling consistent workflows across tools and stages of a project.

Segment Swap

Compare donor and target files and copy compatible segments when you need to carry known-good data across files (use responsibly and only with permission).

Advanced Hex Editor

Inspect and edit bytes directly with search, hex/ANSI modes, and segment-aware views useful for diagnostics, inspection, and research workflows.

Sorter (OS / Make / Year)

Batch-organize large folders into clean structures. Multi-level sorting helps you keep customer files, revisions, and platforms easy to find.

Updates & Supportability

Built-in Check for Updates flow helps keep your install current. The UI is optimized for clarity minimal clutter, maximum utility.

Responsible-use note

This tool is intended for legitimate file-management and editing workflows. Always ensure you have the rights and permissions to use and modify any calibration files, and comply with all local laws and regulations. Off-road/closed-course use only where applicable.

PAT Calibration ToolboxPATcalibrationToolboxcalibration file editorcalibration file toolcalibration convertercalibration to BINBIN to calibrationsegment swaphex editorcalibration file utilityfile sorterOS sorterVIN decodertuning file organizerPerformance Auto Technologies

Screenshots

Real UI captures from PAT Calibration Toolbox (4.2.9) — the redesigned two-panel interface, shown tab by tab: Convert, Segments, Search, Sorter, XDF Downloader, CAX8 Downloader, BIN PATCHER, Tools, Stock Files and Account.

CONVERT — FROM BIN and TO BIN
SEGMENTS — swap matched segments between files
SEARCH — fast background search across a folder
SORTER — multi-level sort by OS / Make / Year
XDF DOWNLOADER — definitions for the open OS

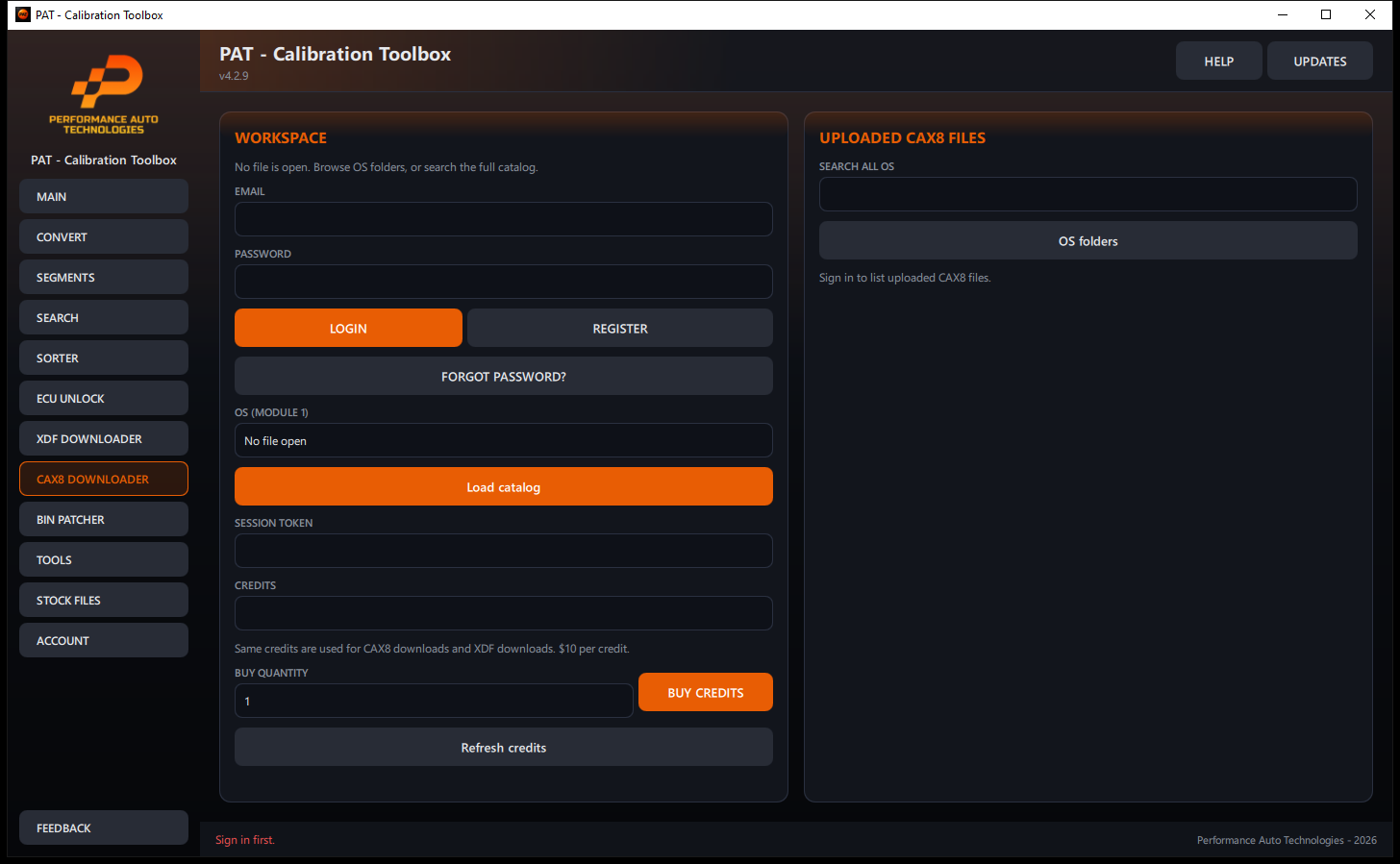

CAX8 DOWNLOADER — definition files for the open OS
BIN PATCHER — apply patches to the module 1 OS
TOOLS — PAT VBF/PHF ↔ BIN, XCAL, checksums, VIN2HEX and more

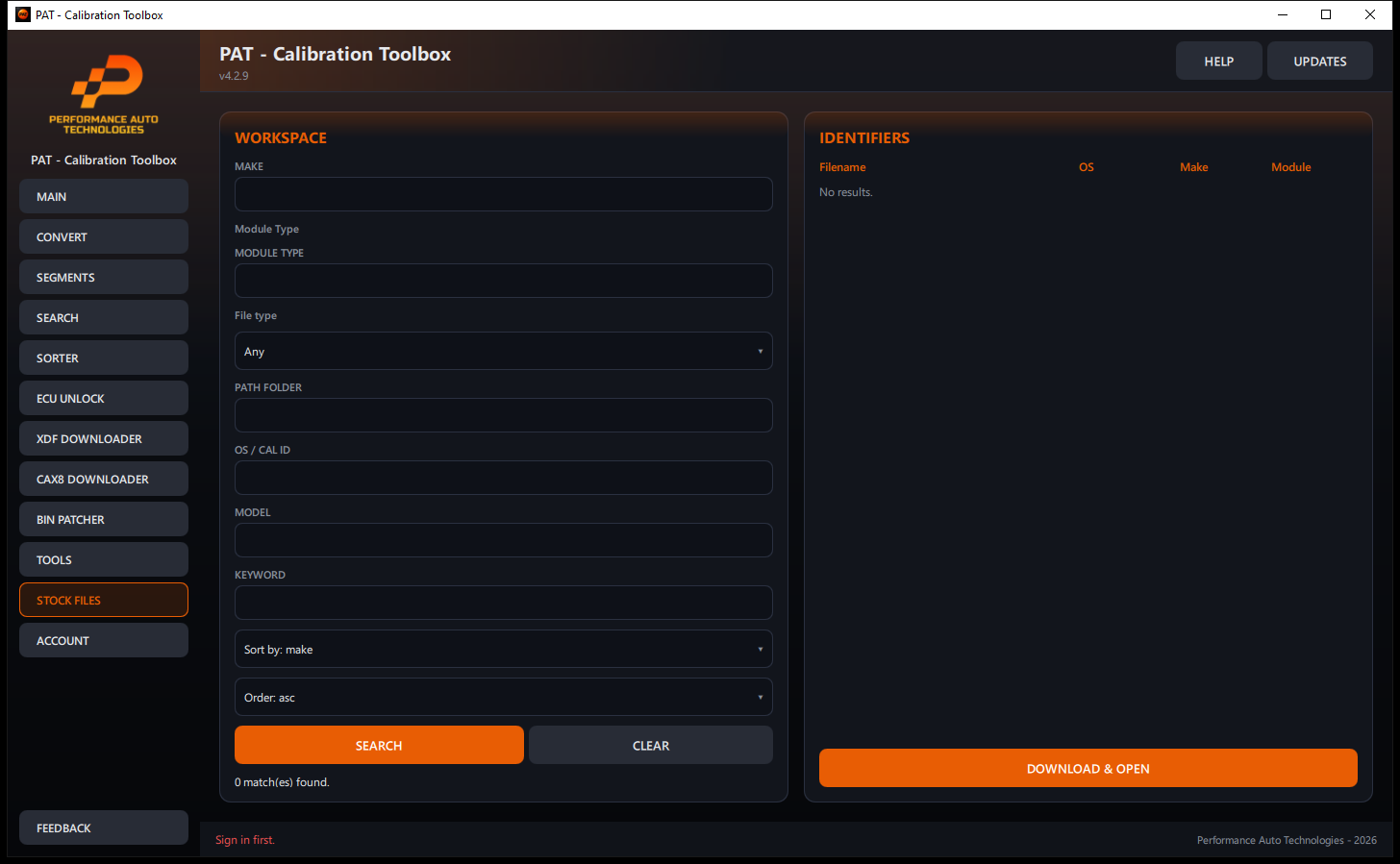

STOCK FILES — search and download stock tunes

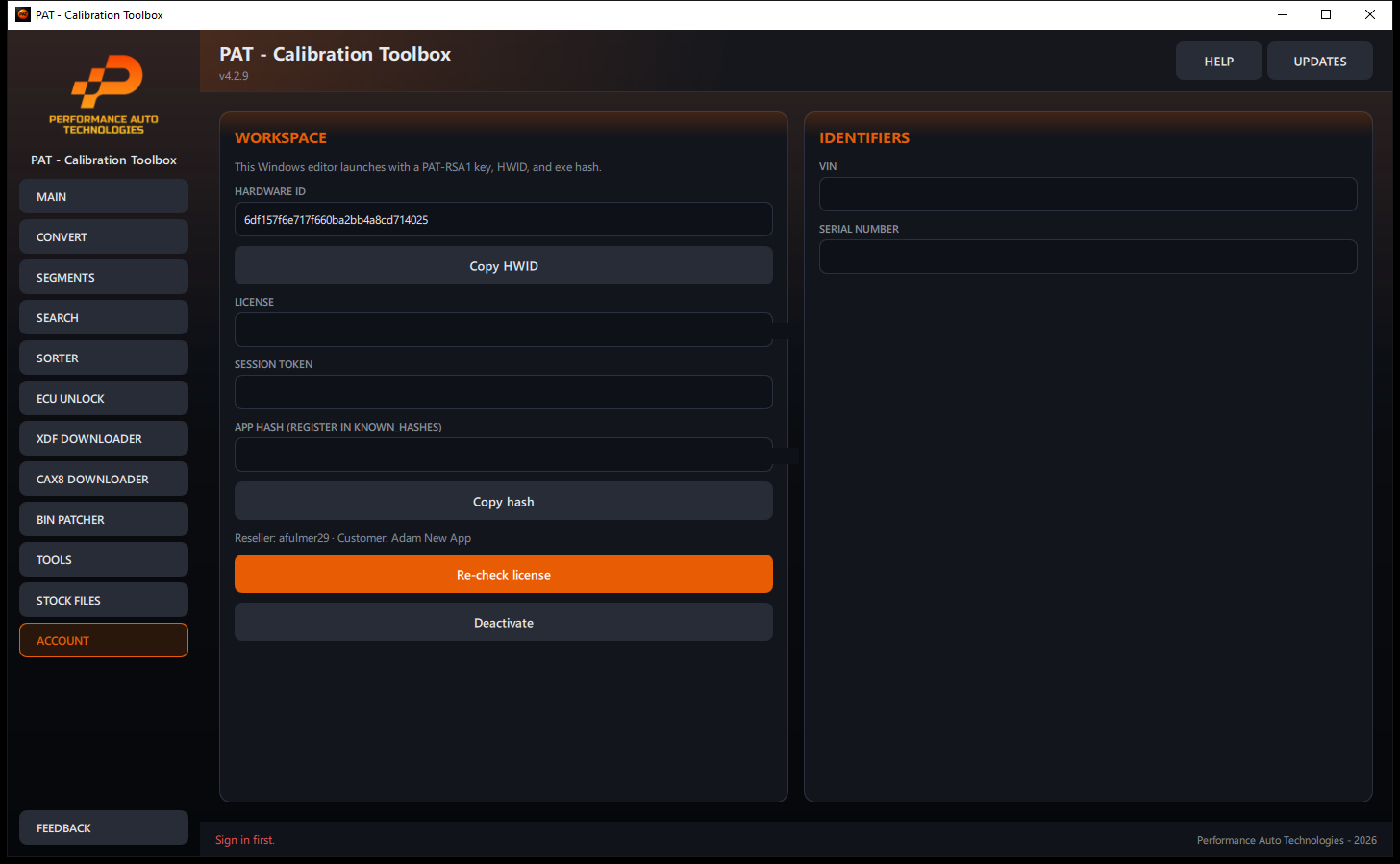

ACCOUNT — license, HWID and session status

A workflow that scales

Whether youre handling a single file or a full customer library, the UI is built around repeatable steps.

1
Open & InspectLoad a file and review identifiers (VIN, OS/strategy, module IDs, version).
2
Decide the PathChoose conversion, segment operations, or direct inspection/editing.
3
Convert as NeededMove between calibration files and BIN for your preferred tooling.
4
Manage SegmentsCompare donor vs target and apply compatible segments when appropriate.
5
Organize LibrariesBatch sort by OS/strategy, make, year keep everything searchable and clean.

Key capabilities (high level)

  • Redesigned two-panel UI with tabs for Main, Convert, Segments, Search, Sorter, XDF Downloader, CAX8 Downloader, BIN PATCHER, Tools, Stock Files and Account
  • Identifier extraction: VIN, OS/strategy, module IDs, interface/base IDs (where detectable)
  • Two-way calibration and BIN conversion utilities for consistent workflows
  • Segment comparison and copy operations for compatible files
  • Advanced hex editor with search and ASCII/hex views
  • Batch sorting with multi-level rules (e.g., OS Make Year)
  • In-app update check and modern dark/orange visual theme

System requirements

  • Windows 10/11 (64-bit recommended) or macOS 13+ (Apple Silicon and Intel)
  • Modern x64 / Apple Silicon CPU, 4GB+ RAM recommended
  • Disk space for file libraries (sorting/copy operations can duplicate data)
  • Network access (optional) for update checks

Note: Compatibility depends on the file format generation and platform. If youre unsure, use the purchase page link below for current support notes.

Latest downloads

Download the newest stable PAT Calibration Toolbox build for your platform — the Windows installer (.exe) or the macOS disk image (.dmg). The Windows version/link also load from update.json.

Download

Download for Windows (.exe) Download for macOS (.dmg) Open update.json

Windows 10/11 (64-bit) • macOS 13+ (Apple Silicon & Intel)

Manifest

Latest version
Download URL
SHA-256

Release notes

  • Release notes load from update.json.

Verify the download (SHA-256)

Published SHA-256:

FAQ

Quick answers to the most common questions.

What file types does PAT Calibration Toolbox work with?

PAT Calibration Toolbox is designed around calibration files and supports workflows for converting between calibration files and BIN formats, inspecting file metadata, and organizing file libraries. Exact compatibility can vary by platform and file generation.

Does this include tuning files or calibrations?

No. The software is a file utility/editor. It does not include vehicle-specific tuning content. You supply your own files and are responsible for having the rights/permissions to use and modify them.

What operating systems are supported?

Windows 10/11 (64‑bit) is recommended. The app is a modern desktop program optimized for performance and large file handling.

Can I update the software from inside the app?

Yes. The UI includes a “Check for Updates” button that can notify you when a newer version is available.

Is there a way to organize large folders of files?

Yes. The Sorter tab can sort batches of files into folders using identifiers such as OS/strategy, year, and make (where detectable), with multi-level sorting options.

Get PAT Calibration Toolbox

Purchase and download from Performance Auto Technologies. The product page also contains the latest availability and options.

PAT Calibration Toolbox

Official purchase link: https://performanceautotechnologies.com/product/pat-calibration-toolbox/
